Gigabyte Intel H310M S2H Coffee Lake MicroATX Motherboard
Exclusive Realtek 8118 Gaming LAN :
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen2 x2 2280 M.2 Connector :
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
High Definition Digital Outputs :
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
Smart Fan 5 :
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

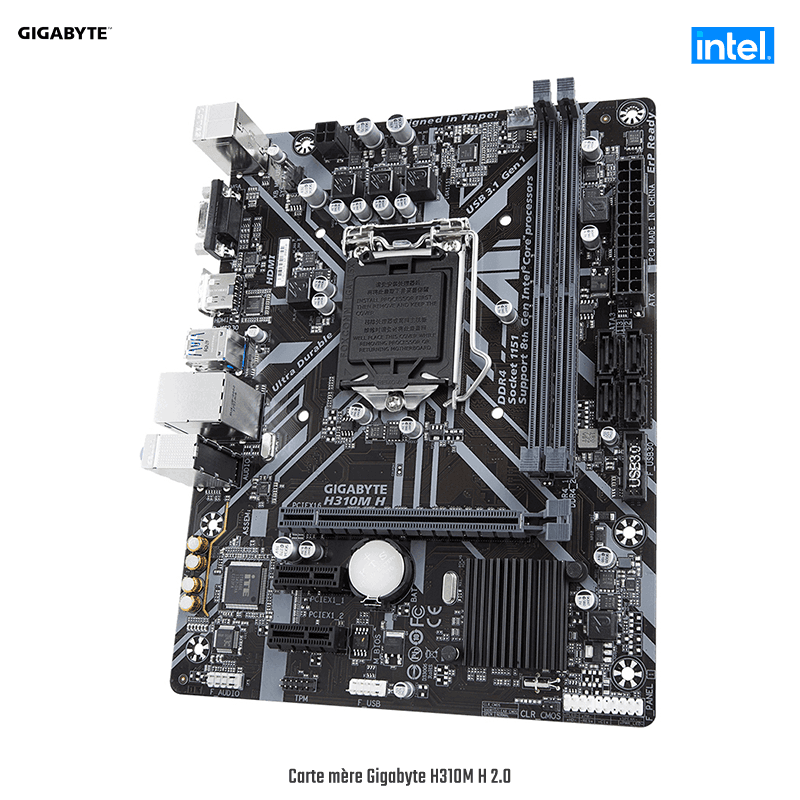

Carte mère Gigabyte H310M S2H 2.0
Modèle : H310M-S2H V2 - Format de carte mère : Micro ATX - Support du processeur : Intel 1151 - Chipset : Intel H310 Express - Format de mémoire : 2 X DIMM 288 pins (DDR4) - Fréquence Mémoire : DDR4 2133 MHz / DDR4 2400 MHz / DDR4 2666 MHz - Type de mémoire : DDR4 - Technologie mémoire : Dual Channel - Capacité max de RAM par slot : 16 GB - Capacité max de RAM : 32 GB - Connecteur graphique : 1 X PCI Express 3.0 16x - Nombre et Type de slots : 2 X PCI Express 1x - Chipset Audio : Realtek ALC887 - Norme réseau : 10/100/1000 Mbps - Connecteurs Disques : 1 X M.2 - PCI-E 3.0 2x + SATA 6 Gb/s / 4 X Serial ATA 6Gb/s (SATA Revision 3).
Connecteurs panneau arrière : 3 X Jack 3,5mm Femelle Stéréo - 2 X MiniDin 6 Femelle (PS/2) - 1 X RJ45 Femelle - 4 X USB 2.0 - 2 X USB 3.0 - 1 X DVI Femelle - 1 X HDMI Femelle - 1 X VGA (D-sub 15 Femelle) -
Connecteurs additionnels : TPM - Audio panneau avant - 1 X +12V (Alimentation P8) - 1 X ATX 24 Broches - 2 X USB 2.0 interne - 2 X USB 3.0 interne.
